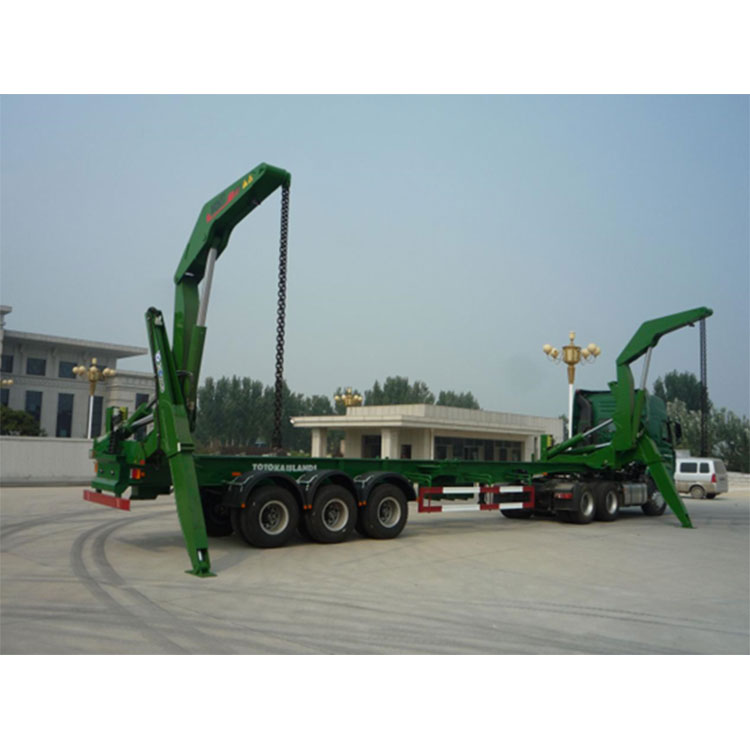

Zelfladen en lossen van container semi -trailer

De nieuwste semi -trailer van zelfladen en lossen van container in 2024 is een gespecialiseerde transporttrailer voor het transport van containers. De grootte van het laadgedeelte van de containertrailer wordt bepaald op basis van de standaard containergrootte en een draaivergrendelingsapparaat wordt geïnstalleerd op de overeenkomstige vier hoeken van de bodem van de container om de container te repareren.

Stuur onderzoek

Productomschrijving

Self loading and unloading container semi trailers are mainly used in logistics systems supporting ships, ports, shipping routes, highways, transfer stations, bridges, tunnels, and multimodal transportation. 1. Specially used for the transportation of various containers. Can be reused for a long time and has sufficient strength. 2. By using containers to transport goods, they can be loaded directly at the shipper's warehouse and unloaded at the consignee's warehouse. When changing vehicles or ships midway, there is no need to remove the goods from the container for replacement. 3. It can be quickly loaded and unloaded, and can be easily transferred from one mode of transportation to another. 4. Facilitate the filling and unloading of goods to meet the personalized needs of customers. Ensure tooling according to customer needs, with stable quality and reliable performance. Container semi-trailer is a specialized transport trailer for carrying containers.

Product Parameter

SELF LOADING AND UNLOADING CONTAINER SEMI-TRAILER SPECIFICATIONS
This model is mainly used for short distance transportation of containers, and its main function is to load and unload standard containers by itself; Applicable to container specifications 40# and 45# and other containers; Solve the cost and timeliness of terminal services; The model is mainly composed of container skeleton semi-trailer chassis, container crane assembly, container gripper assembly, container rear roll stabilizer, rear stable hydraulic support roller, hydraulic distribution system, electrical control system, etc
Brand		SINOCTM
Dimension (LxWxH) (unloaded)		133755×2550×3750(mm)
Overhang (rear)		2360(mm)
Wheel base		6250+1310+1310(mm)
Curb weight		9000(kg)
Gross vehicle weight		40000(kg)
Container crane Specifications
Max. Lifting Capacities		40000(kg)
Hydraulic Oil Tank		90L
Hydraulic Piston Pump		60L / min
Working Pressure		20Mpa
Self loading and unloading time		About 3 minutes/per working cycle
control method		Wireless rocker control

Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice
